Python Procedural City


This is a project that will procedurally generate a city.  The focus is to use Python inside Houdini to create an application that can assist in city creation without having to individual place all the structures.

Bounding Box Layout of the buildings

Test of the Buildings

Generate a City Map

The first step is to create a map that can be imported into Houdini. I found a website online that can generate random city layouts called the Medieval Fantasy City Generator. After making a layout that works for the design, I bring the image into illustrator, clean it up and rasteurize it.

Convert to Geometry

Import the map as a Adobe .ai file, or an .eps file then convert it to geometry. At this point I manually select the blocks to be designated as commercial buildings and assign the primitive numbers to a group that will separate the blocks by color.

Code to assemble the individual blocks and assign the building type.

Python Code Block 1

Import City Blocks and Sim Clusters


Code to import buildings and create the nodes that add the bounding box and the attribute parameters that will be passed through to the clustering simulation.

Cluster the Buildings

Pop Attract is used to pull the buildings into the center so they can be placed over the individual blocks before being transferred to the main simulation. The left image shows the buildings scattered onto the points of a grid, the right image shows the buildings after the first simulation is run. The clusters are then stored in Null nodes where they will be randomly pulled and placed into the simulation.

Generate the City Blocks

The clusters are called and placed over the block shapes where they are filtered based on location. Buildings outside of the shape are removed, while buildings inside the shape are pulled to the outside of the shape using another Pop Attract. The buildings are now sorted as inside or outside the block space. Outside blocks are deleted and the space that remains in the center of the shape is then filled with smaller commercial buildings.

The Main Simulation

Block Shapes receive more filler buildings based on the offset space remaining in the center of the block. When the simulation is run, each block shape recieves a cluster of randomly selected buildings. The final output is a point cloud for each block that holds the reference number for each building that has been assigned.

Import the Assembled Block Point Cloud

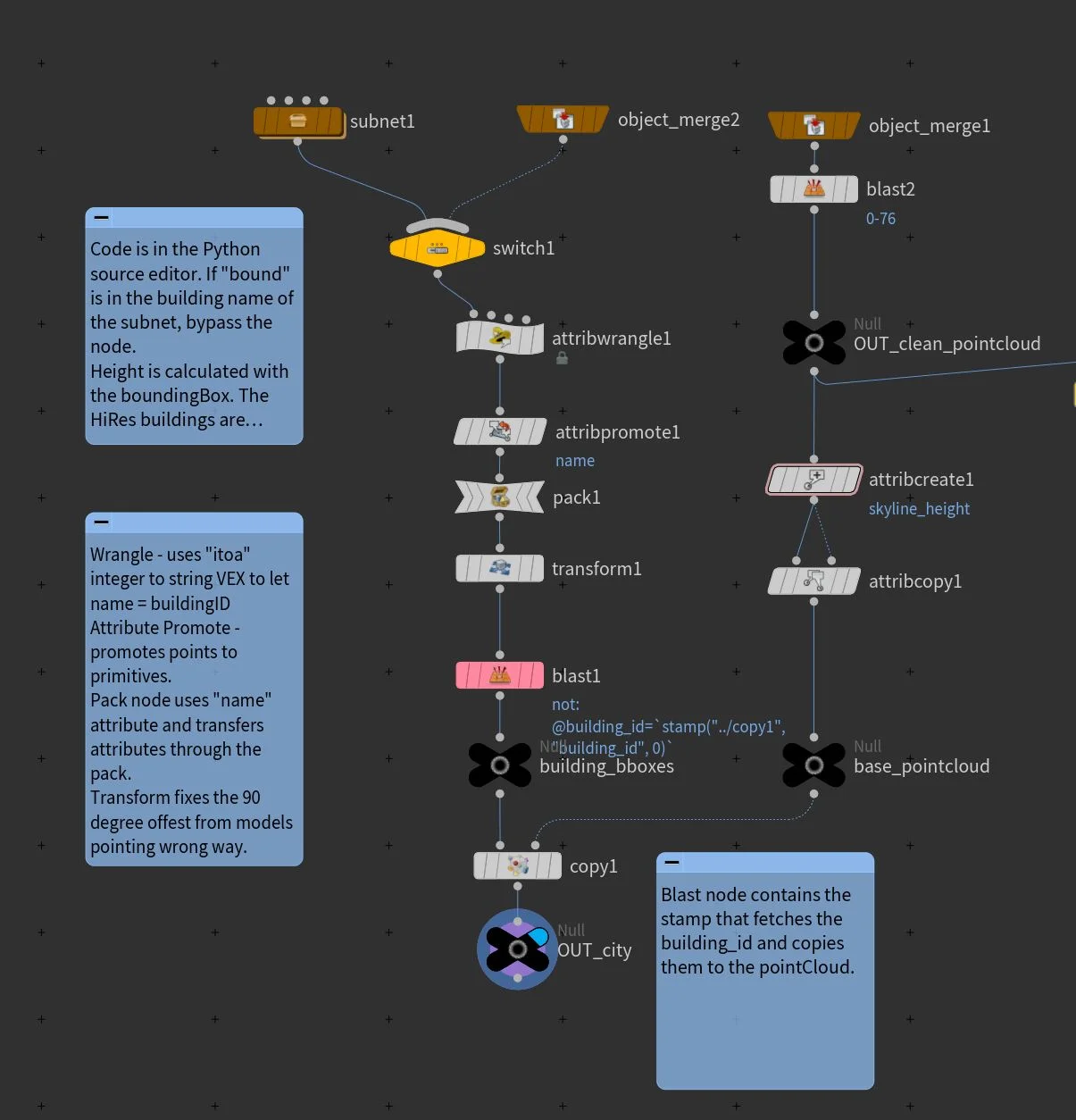

Python is used again to import and create the file nodes that were written during the simulation. The original block position is recalled and the blocks are reassembled in their original positions. The blocks are then sent to the final section where the buildings are copied back onto them and the city is assembled.

3D Menger Sponge - Part 2


A typical cubic Menger Sponge is shown in figure 1. It is a fractal object created by recursively replacing a cube with a grid of 27 sub-cubes of which 7 are removed. Figure 2 shows four objects where the depth of recursion is 0, 1, 2 and 3.

Project Details

This project was designed to bring the Menger Sponge into a 3rd spacial dimension. Through adjusting the code and adding the holeLUT the shape expands and also removes points adding interest to the design.


Python Code in Houdini

node = hou.pwd()
geo = node.geometry()

# Add code to modify contents of geo.
# Use drop down menu to select examples.

import random

#Declaring Variables For Houdini
node = hou.pwd()
geo = node.geometry()

meng = hou.node('/obj/menger')

bx = node.evalParm("width")
by = node.evalParm("height")
bz = node.evalParm("depth")
iterations = node.evalParm("iterations")
scaleP = node.evalParm("objectScale")
#rands = random.random()*node.parm("randomSeed").eval()
bounds = [0, 0, 0, bx, by, bz]
#declare the global variables
holes = []  # list of deleted cubes
menger = [] # list of non-deleted cubes
holeLUT = [19,14,12,9,7, 0]
#holeLUT = [22,16,14,13,12,10,4]
# finds the center of the 'box' to create a point
def center(bbox):
    x,y,z,X,Y,Z = bbox
    midpnt = []
    midpnt = ((x+X)/2, (y+Y)/2, (z+Z)/2)
    return midpnt
# this proc returns the bounding box coordinates of a "row" of three boxes.
def row(x0,y0,z0, w,h,d):
    x,y,z = x0,y0,z0
    X,Y,Z = x + w, y + h, z + d
    boxes = []
    for n in range(3):
        box = [x,y,z, X,Y,Z]
        z,Z = z + d, Z + d
    return boxes
# Recursion begins breaking the bounding box into 27 sub divisions
def divide(bbox, depth):
    if depth == 0:
        return []
    x0,y0,z0,x1,y1,z1 = bbox
    w = float(x1 - x0)/3
    h = float(y1 - y0)/3
    d = float(z1 - z0)/3
    x,y,z = x0,y0,z0
    boxes = []
    for layer in range(3):
        x = x0
        for rows in range(3):
            x = x + w
        y = y + h
    boxes = delete(boxes)
    # Recursion________________
    for box in boxes:
        divide(box, depth - 1)
    return boxes
# Uses the indices in the holeLUT to remove specific cubes
# from the list of 27 cubes in the "boxes" arg.
def delete(boxes):
    for n in range(len(holeLUT)):
        hole = boxes.pop(holeLUT[n])
    return boxes

###implement code
divide(bounds, iterations)
#create pscale
createpscale = geo.addAttrib(hou.attribType.Point, "pscale" , scaleP)

for box in menger:
    pt = geo.createPoint()
count = 0
for box in holes:
count += 1


This was a fun project, once it's implemented in its basic form there are infinite adjustments that can be added for visual interest. Using "Class" in python helps to grow and control the program making it easier to organize the logic.

Sierpinski's Gasket - Houdini and Mantra


The purpose of this project was to write a Python script that would generate points in 3D space using the fractal algorithm for Sierpinski's Gasket. The intention was to make the script  renderable in several 3D rendering software packages.


Sierpinski's gasket is created by defining the vertices/points of a tetrahedron, choosing a random point within the tetrahedron, picking a vertex/point of the tetrahedron at random, finding the midpoint between that random point and random vertex and then storing that midpoint in a list. This process is done over and over again in order to create the fractal.

1. Pick a random clocation

2. Define a seed point

3. Collect points (vertices) from a list of 4 to generate the Sierpinski Fractal

4. Find the mid-point of 1 and 2

5. Save the mid-point

The Sierpinski triangle, also called the Sierpinski gasket or the Sierpinski Sieve, is a fractal and attractive fixed set with the overall shape of an equilateral triangle, subdivided recursively into smaller equilateral triangles.

The Following Code Was Modified For Houdini And Rendered With Mantra:

Python Code:

node = hou.pwd()
geo = node.geometry()

# Add code to modify contents of geo.
# Use drop down menu to select examples.

import random
#import math
#import socket

# Procedure halfstep returns a midpoint between two
# user-defined points
import random, math

def halfstep(p1, p2):
        a = float(p1[0] + p2[0]) / 1.5
        b = float(p1[1] + p2[1]) / 2
        c = float(p1[2] + p2[2]) / 2
        result = [a , b, c]
        return result

def pickpnt(pnts):
        result = random.choice(pnts)
        return result

triangle = [ [0,0,1], [1,0,-1], [-1,0,-1], [0,1.5,-0.2] ]
seed_pnt = [0,0.5,0]
point_list = []

for n in range(25000):
        vert = pickpnt(triangle)
        seed_pnt = halfstep(vert, seed_pnt)


Modifications To Midpint

def halfstep(p1, p2):
    a = float(p1[0] + p2[0]) / 2
    b = float(p1[1] + p2[1]) / 1.3
    c = float(p1[2] + p2[2]) / 2
    result = [a , b, c]
    return result

Through Manipulating The Initial Definition You Can Create Variations Of The Design.

def halfstep(p1, p2):
    n = random.randint(1, 10)
    a = float(p1[0] + p2[0]) / n
    b = float(p1[1] + p2[1]) / n
    c = float(p1[2] + p2[2]) / n
    result = [math.sin(a) , math.cos(b), c]
    return result

def pickpnt(pnts):
    result = random.choice(pnts)
    return result
